Customize Your Floor PlanWalnut Groves Luxury Home
House Plan #592-141D-0342
© Copyright by designer/architect Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.
Luxury Master Bedroom Suite
Floor Plans

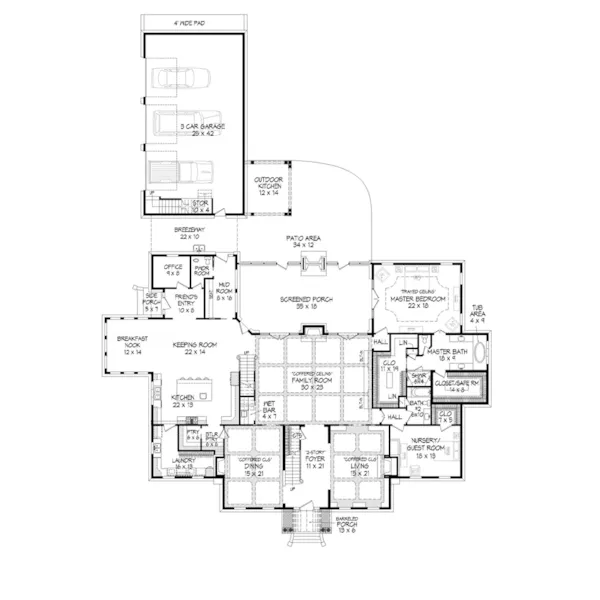

Floor Plan - 141D-0342

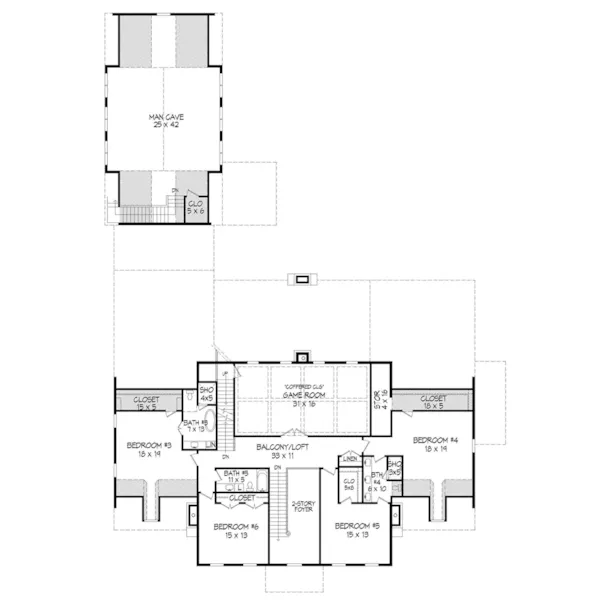

Floor Plan - 141D-0342
| CAD Package | $6,300.00 |
| PDF File Format (recommended) | $5,250.00 |
| 5-Set Package | $5,600.00 |
| Right Reading Reverse | $300 |
| Additional Sets | $70 |
| 2x6 Exterior Walls | $300 |
| Add PDF to Printed Plan Package | $210 |
| Slab | No additional fee |
| Standard Foundation: Crawl Space | No additional fee |
| Basement | $900 |
| Walkout Basement | $1,000 |
| Method | Home Plans | Project Plans |
|---|---|---|
| US Regular (7-10 business days) | $35 | $25 |
| US Priority (3-5 business days) | $55 | $45 |
| US Express (1-2 business days) | $75 | $65 |
| Canada Standard (8-12 business days) | $50 | $40 |
| Canada Express (3-5 business days) | $100 | $80 |
| Legal Kit | $35 |
| Plumbing Kit (not plan specific) | $30 |
| Electrical Kit (not plan specific) | $30 |
| Framing Kit (not plan specific) | $30 |
| Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) | $60 |
| Add PDF to Printed Plan Package | $210 |
Get a free instant estimate for your area, then order a detailed cost-to-build report if you want the full breakdown.
Quick Details
- Total Heated Sq Ft: 7,200
- 1st Floor: 4,519 sq ft
- 2nd Floor: 2,681 sq ft
- Bonus Space: 1,100 sq ft
- Dimensions: 99'-10" x 123'-8"
- Width: 99'-10"
- Depth: 123'-8"
- Exterior Wall Framing: 2" x 4"
- Bedrooms: 6
- Bathrooms: 4 + 2 half
- Garage: 3-Car Garage (1,228 sq ft)
- 3-Car Attached, Side Entry
- Size: 25'-0" x 42'-0"
- 3-Car Attached, Side Entry
- Porches & Decks:
- 222 sq.ft. Breezeway, Concrete flooring, Covered roof
- 618 sq.ft. Screen Porch, Concrete flooring, Covered roof
- 168 sq.ft. Outdoor Kitchen, Concrete flooring, Covered roof
- 100 sq.ft. Porches, Concrete flooring, Covered roof
- Foundation: Crawl Space
- Optional: Slab, Basement, Walkout Basement
